Hansheng Automation (Dongguan) Co., Ltd. yog ib qho ntawm cov tuam ntxhab thiab cov muag khoom ntawm miter iav hauv Suav teb. Yog hais tias koj yuav mus rau cov lag luam wholesale bulk nqi- zoo miter iav ua nyob rau hauv Suav teb, txais tos kom tau txais pricelist thiab hais los ntawm peb lub hoobkas. Tsis tas li, kev pabcuam customized thiab OEM & ODM kev pabcuam muaj.
Khoom nta

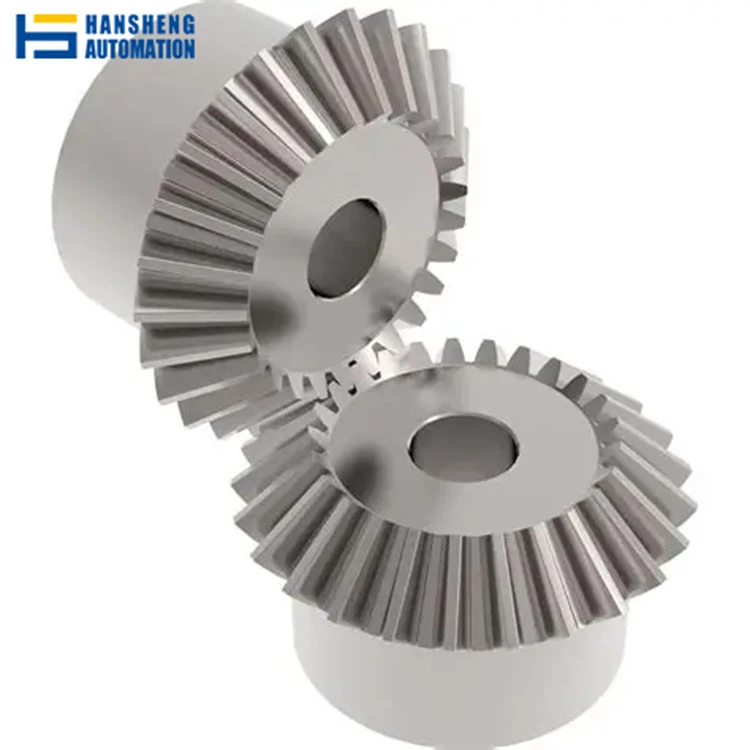

Miter Gears yog ib hom subtype ntawm bevel iav qhov twg ob lub iav mesh ntawm 90-degree lub kaum ntse ntse thiab muaj cov hniav sib npaug, ua rau 1: 1 iav piv. Qhov no ua rau lawv zoo tagnrho rau redirecting tsab ntawv tsa suab tsis hloov qhov ceev los yog torque.
Cov txiaj ntsig tseem ceeb ntawm Peb Cov Miter Gears
Optimal Fais Fab Kis
Peb cov Miter Gears tau tsim kho los muab kev hloov pauv hluav taws xob zoo thiab muaj txiaj ntsig, txo qis zog poob thaum lub sijhawm hloov pauv.
Siab Precision
Siv CNC sib tsoo thiab hobbing, peb xyuas kom meej tias txhua lub Miter Iav teeb muaj cov hniav zoo meej rau kev ua haujlwm ntsiag to.
Versatile Configurations
Peb muab ob qho tib si Ncaj Miter Gears rau cov qauv siv thiab Kauv Miter Gears rau siab -ceev, qis- suab nrov.
Kev kho kom haum
Los ntawm qhov loj me thiab qhov tseem ceeb rau kev kho cua sov tshwj xeeb, txhua yam ntawm koj lub Miter Gears tuaj yeem hloov kho kom haum rau koj cov tshuab.
Lub Hoobkas muaj peev xwm
Peb qhov chaw tsim khoom yog nruab nrog lub xeev - ntawm - - cov tshuab kos duab tshwj xeeb tsim los rau kev tsim cov qib siab - qib Miter Gears. Peb tsis yog txiav cov hniav xwb; peb engineer kev ua tau zoo.
| Cov khoom siv duab | Cov ntaub ntawv khoom siv | |
|
|
Khoom npe | KPS30 Iav Hobbing Tshuab |
| Machining txoj kab uas hla | 3-300 hli | |
| Maximum Machinable Module | 4 | |
| Tool Axis Tilt Angle | ± 30 degree | |
| Qhov siab tshaj plaws Spindle Speed | 2,500 rpm | |
| Maximum Worktable Ceev | 1,500 rpm | |
| Cov khoom siv duab | Cov ntaub ntawv khoom siv | |
 |
Machining txoj kab uas hla | 3-300 hli |
| CNC System | NJ-i50H CNC System: 7-Axis Tswj, 4-Axis Simultaneous Interpolation | |
| Spindle Drive | Hob Spindle-Drect tsav ntawm spindle servo lub cev muaj zog; Workpiece Spindle- Tsav ncaj qha los ntawm kev tsim- hauv lub cev muaj zog. | |
| Muaj peev xwm ua tau | Muaj peev xwm ntawm machining cylindrical zog, cab iav, sprockets, toothed synchronous siv pulleys, flexsplines, splines, thiab cov khoom zoo sib xws. | |
Advanced CNC Machining: Peb siv ntau -axis CNC chaw los xyuas kom meej qhov kev ncua deb thiab cov hniav geometry ntawm peb cov Miter Gears yog flawless; Kev soj ntsuam nruj: Txhua pawg ntawm Miter Gears raug kuaj nruj, suav nrog kev sib koom ua ke ntsuas tshuab (CMM) cov lus ceeb toom thiab cov hniav nto roughness checks: Peb muab kev kho cua sov rau lub neej. carburizing, nitriding, thiab induction hardening kom ncav cuag qhov xav tau HRC qib.
Technical Parameters
Hauv qab no yog cov qauv specifications rau peb cov kev cai miter iav. Nco ntsoov tias peb tuaj yeem kho cov kev txwv no raws li koj cov duab kos tshwj xeeb.
| Parameter |
Specification Paub meej |
| Hom iav |
Ncaj Miter Iav / Kauv Miter Iav |
| Khoom siv |
Hlau, Stainless hlau, tooj dag, Nylon, POM |
| Module (m) |
0.1, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 |
| Lub kaum sab xis |
20℃(Standard) los yog Custom |
| Ncej kaum | 90 degree |
| Gear Ratio | 1:1 |
| Hardness |
HRC 45-60 (tom qab kev kho cua sov) |
| Nto tiav |
Av, Polished, los yog Coated |
Cov khoom siv
Peb cov Miter Gears tau siv thoob plaws ntau qhov kev lag luam uas yuav tsum muaj kev hloov pauv hauv kev taw qhia:
FAQ
Q: Qhov txawv ntawm Bevel Gear thiab Miter Iav yog dab tsi?
A: Tag nrho cov Miter Gears yog bevel iav, tab sis tsis yog txhua lub iav bevel yog miter iav. Miter Gears tshwj xeeb muaj qhov sib piv 1: 1 thiab mesh ntawm 90-degree lub kaum ntse ntse. Tus qauv bevel iav tuaj yeem muaj ntau qhov sib piv (xws li 2: 1 lossis 5: 1).
Q: Koj puas tuaj yeem tsim Miter Gears raws li kuv cov qauv 3D?
A: Yog, Sango Automation tshwj xeeb hauv kev tsim khoom. Peb tuaj yeem ua haujlwm nrog STEP, IGES, lossis DWG cov ntaub ntawv los tsim Miter Gears uas ua tau raws li koj qhov tshwj xeeb.
Q: Vim li cas ISO Qib 5 qhov tseeb tseem ceeb rau Miter Gears?
A: High precision txo cov suab nrov, kev co, thiab cua sov tsim. Hauv kev siv neeg hlau, Qib 5 Miter Gears kom ntseeg tau qhov tseeb ntawm qhov chaw siab dua thiab lub neej ntev dua rau tag nrho cov gearbox.
Q: Koj puas muab Miter Gear teeb lossis ib tus neeg lub zog?
A: Peb pom zoo kom yuav Miter Gears hauv cov khub sib tw. Txij li thaum lawv tau tsim los rau mesh zoo kawg nkaus, siv cov iav los ntawm cov khoom sib txawv tuaj yeem ua rau muaj kev hnav thiab suab nrov.
