Hansheng Automation (Dongguan) Co., Ltd. yog ib qho ntawm cov tuam txhab kev paub tshaj plaws thiab cov chaw muag khoom ntawm cov iav hypoid hauv Suav teb. Yog hais tias koj yuav mus rau cov lag luam wholesale bulk nqi- zoo hypoid iav ua nyob rau hauv Suav teb, txais tos kom tau txais pricelist thiab hais los ntawm peb lub hoobkas. Tsis tas li, kev pabcuam customized thiab OEM & ODM kev pabcuam muaj.
Leveraging advanced Power Skiving thev naus laus zis, peb tshwj xeeb hauv kev tsim cov qib siab - precision iav nrog modules xws li 0.1 mus rau 5.0 (txoj kab uas hla 3mm-300mm), npog tag nrho cov iav tsim xws li spur iav, helical iav, hypoid iav, thiab iav iav.

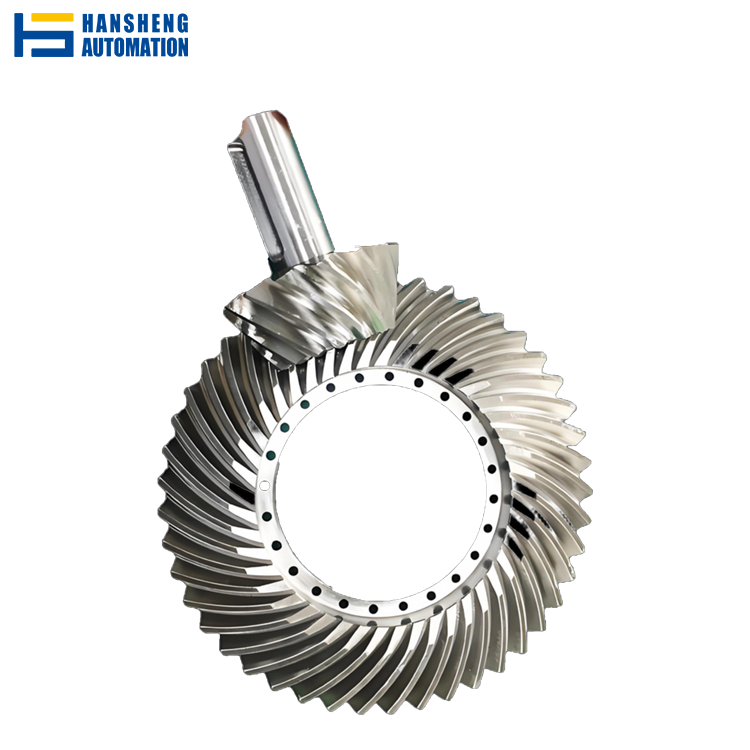

Peb cov khoom siv feem ntau yog siv rau hauv daim ntawv thov xws li reducers, robots, thiab siab -kawg lub tsheb. Hauv qab no, peb muab cov ntaub ntawv hais txog peb Hypoid Gear ntau lawm.
Lub zog Skiving Advantage
Tsis zoo li cov txheej txheem milling ib txwm, peb cov kab ntau lawm yog anched los ntawm Kashifuji Gear Skiving Tshuab KPS30. Lub xeev no - ntawm - - cov khoom siv kos duab tso cai rau peb kom ua tiav cov duab geometry zoo dua thiab ua tiav saum npoo, tshwj xeeb tshaj yog rau hypoid thiab cov iav sab hauv.
ISO / DIN Qib 5 Qhov tseeb
Peb tsis tsuas thov precision; peb xa cov ntawv pov thawj tseeb txog qib 5.
Hard iav tiav
Muaj peev xwm ntawm machining tshav kub- kho workpieces ncaj qha, tshem tawm distortion thiab xyuas kom meej cov hniav sib cuag.
Complex Geometry
Qhov ntau-axis muaj peev xwm ntawm peb qhov teeb tsa ua haujlwm yooj yim offset geometry ntawm hypoid gears tau yooj yim.
Paub meej Specifications & Muaj peev xwm
Peb tsom mus rau precision kis tau tus mob, thiab cov hauv qab no yog cov tsis muaj thiab specifications ntawm pebHypoid iav.
|
Parameter |
Specification & Muaj peev xwm |
|
Module Ntau |
0.1 - 5.0 |
|
Tswv yim Dia |
Ø 3mm - Ø 300mm |
|
Qhov tseeb Class |
ISO / DIN / GB Qib 5-6 |
|
Lub kaum sab xis |
Txheem 20 degree |
|
Helix Angle |
0℃rau ± 45℃(Txog 60℃rau kev tsim tshwj xeeb) |
|
Tus naj npawb ntawm cov hniav |
5z - 150z+ |
|
Backlash (Sab) |
0.02mm - 0.08mm (Precision Fit) |
|
Nto Hardness |
HRC 58 - 62 (Carburized) |
|
Core Hardness |
HRC 30 - 45 |
|
Hom / Ncej hom |
Round, Internal Spline, Keyway, D-txiav |
|
Khoom siv |
20CrMnTi, SCM415, SNCM439, SUS303/304 |
|
kho |
Tau customized raws li kev xav tau tshwj xeeb |
Vim li cas koom tes nrog Hansheng?
Core Technology Ntug
Peb lub zog Skiving txheej txheem yog 3-5x sai dua shaping, tsis tau muab ib tug zoo li hauv av tiav. Lub KPS30 tso cai rau peb kom tshuab iav hniav thiab cov yam ntxwv sab hauv (xws li splines) hauv ib qho kev teeb tsa, lav kev sib koom ua ke hauv qab 5µm.
Hauv -Home Tooling Mastery
Peb tsim thiab tsim peb tus kheej precision fixtures thiab clamping puab tsaig siv peb Seibu Hlau EDM (M50B). Qhov no ua kom nruj, tsis sib haum xeeb-dawb clamping rau txawm tias qhov nyuaj tshaj plaws hypoid blanks, uas yog lub hauv paus rau kev ua tiav ISO/DIN 5 raug.
Qhov tseeb Vertical Integration
Los ntawm kev tig (Tswj/Taesin) mus rau iav txiav (KPS30/YK3610Ⅳ) thiab vaj tse machining (HMC Loj), peb tswj tag nrho cov txheej txheem hauv - tsev. Qhov no txhais tau rau lub sij hawm luv luv, kev sib tw nqi, thiab kev tswj tsis tau zoo.
Kev lees paub, Tsis yog Kev cog lus xwb
Txhua batch raug txheeb xyuas ntawm cov iav tsom iav tsom iav rau qhov profile, pitch, thiab runout, kom ntseeg tau tias ua raws li cov qauv raug cog lus.
Peb Cov Khoom Siv Hluav Taws Xob Advanced Fleet
Peb lub rooj cob qhia sib koom ua ke tig, milling, thiab tshwj xeeb iav txiav los muab kev pabcuam "Raw Material to Finished Part" kev pabcuam.
Core Gear Production

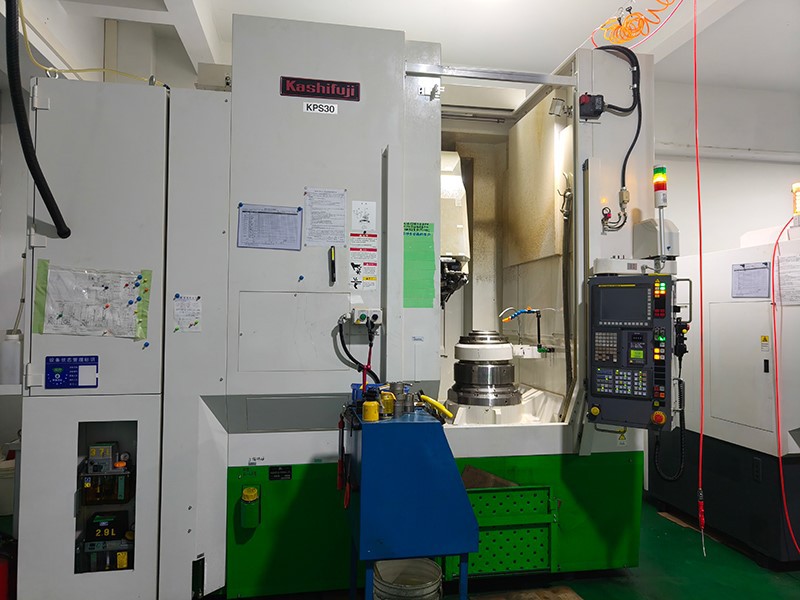

Kashifuji Iav Skiving Tshuab KPS30: Lub plawv ntawm peb lub siab -precision ntau lawm rau sab hauv thiab sab nrauv iav.
Ningjiang CNC Kab rov tav Iav Hobbing Tshuab YK3610Ⅳ: Siab -kev ua haujlwm zoo rau cov qauv ncej iav thiab ntau lawm.
Precision Blank Kev Npaj & Ua tiav
Seibu Hlau Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob (WEDM) M50B: Rau ultra- cov khoom pwm precision thiab kev tsim kho kom yooj yim.
Kwv tij CNC tshuab dhos (TC-S2A) & Taesin CNC Milling: Xyuas kom cov iav blanks muaj zoo meej concentricity ua ntej txiav hniav.
Loj -Nqe Vaj Tsev & Txhawb nqa
Kab rov tav Machining Centers (Max 2100x1060): Thaum peb ua cov iav compact, peb tuaj yeem tshuab cov vaj tsev loj thiab cov thawv rau hauv tsev, muab cov kev daws teeb meem tag nrho.
Quality Assurance
Dedicated Gear Inspection Machines: Txhua batch raug txheeb xyuas qhov tsis raug ntawm qhov profile, pitch yuam kev, thiab runout kom ntseeg tau tias DIN 5 ua raws.
Daim ntawv thov
Vim peb qhov tshwj xeeb (Module 0.1-5.0, Dia<300mm), our hypoid gear are best suited for:
Robotics & Automation
Joint actuators xav tau xoom backlash thiab siab torque ceev.
Cov cuab yeej fais fab
Lub kaum sab xis grinders thiab xyaum xav tau ruaj khov, compact iav teeb.
Khoom siv kho mob
Tsawg- suab nrov kis tau tus mob rau scanners thiab lub txaj phais.
Hluav taws xob Mobility
Txo cov iav rau e-bikes thiab scooters.
FAQ
Q: Dab tsi ua rau koj Hypoid Iav txawv ntawm cov qauv bevel iav?
A: Peb Cov Kev Cai Hypoid Gear feature offset axes, uas tso cai rau kev sib kis ntau dua thiab tsim qauv sib txuam ntau dua piv rau cov qauv sib tshuam bevel iav. Tsis tas li ntawd, los ntawm kev siv CNC Gear Skiving thev naus laus zis, peb ua tiav cov hniav zoo nkauj, ua rau cov suab nrov qis (NVH) tsim nyog rau kev kho mob thiab kev siv neeg hlau.
Q: Dab tsi yog qhov tsawg tshaj plaws module koj tuaj yeem tsim rau Hypoid Gear?
A: Peb tshwj xeeb hauv kev tsim khoom me me module iav. Peb cov khoom siv, suav nrog Kashifuji KPS30, yog qhov zoo rau cov qauv me me li 0.1. Qhov no ua rau peb tus khub tsim nyog rau kev tsim cov iav me me uas siv hauv micro-actuators, cov cuab yeej hluav taws xob, thiab cov cuab yeej siv dav hlau nrog lub taub hau pib los ntawm 3 hli xwb.
Q: Koj puas tuaj yeem lav DIN 5 qhov tseeb rau ntau lawm?
A: Yog. Ua tiav DIN 5 iav qhov tseeb yog ib feem ntawm peb cov txheej txheem rau siab - kawg xaj. Peb siv cov cuab yeej tshuaj ntsuam xyuas qib siab txhawm rau txheeb xyuas qhov tsis raug ntawm qhov profile, suab sib txawv, thiab radial runout ntawm txhua pawg. Peb ua ke ntawm siab -precision tig (Tswv CNC) thiab Skiving ua kom muaj kev sib xws ntawm thawj feem mus rau qhov kawg.
Q: Koj puas muab cov khoom siv sab hauv spline rau cov iav tho?
A: Yog lawm. Ib qho ntawm qhov zoo tshaj plaws ntawm peb cov txheej txheem Power Skiving yog lub peev xwm los tshuab sab hauv splines thiab sab nrauv iav hniav hauv tib lub teeb clamping. Qhov no ua kom muaj kev sib raug zoo ntawm kev sib txuas ntawm cov ncej thiab cov hniav iav, ua kom muaj kev sib kis tau zoo.
Q: Cov ntaub ntawv dab tsi uas kuv xav tau los muab rau kev cai tsocai?
A: Txij li cov iav hypoid yog qhov nyuaj, peb pom zoo kom muab 2D daim duab (PDF) thiab 3D qauv (STEP / IGES). Yog tias koj tsis muaj cov duab kos, peb muab cov kev pabcuam thim rov qab uas peb tuaj yeem luam koj cov qauv siv peb cov cuab yeej ntsuas kev sib koom ua ke kom rov ua dua cov iav tsis raws nraim.
Q: Dab tsi yog qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis rau koj Hypoid Iav?
A: Peb tus qauv txiav txim yam tsawg kawg nkaus (MOQ) yog tsib daim. Peb tswj hwm tus qauv tsim tau yooj yim heev kom haum rau ob qho tib si kev tsim kho thiab nruab nrab - ntim series ntau lawm. Tiv tauj peb los tham txog koj qhov project tshwj xeeb xav tau.
